Projects

The RunScribe databank is growing by millions of footsteps a week and comprises over a billion data points.
Here we showcases interesting projects and visualization tools enabled by this databank.

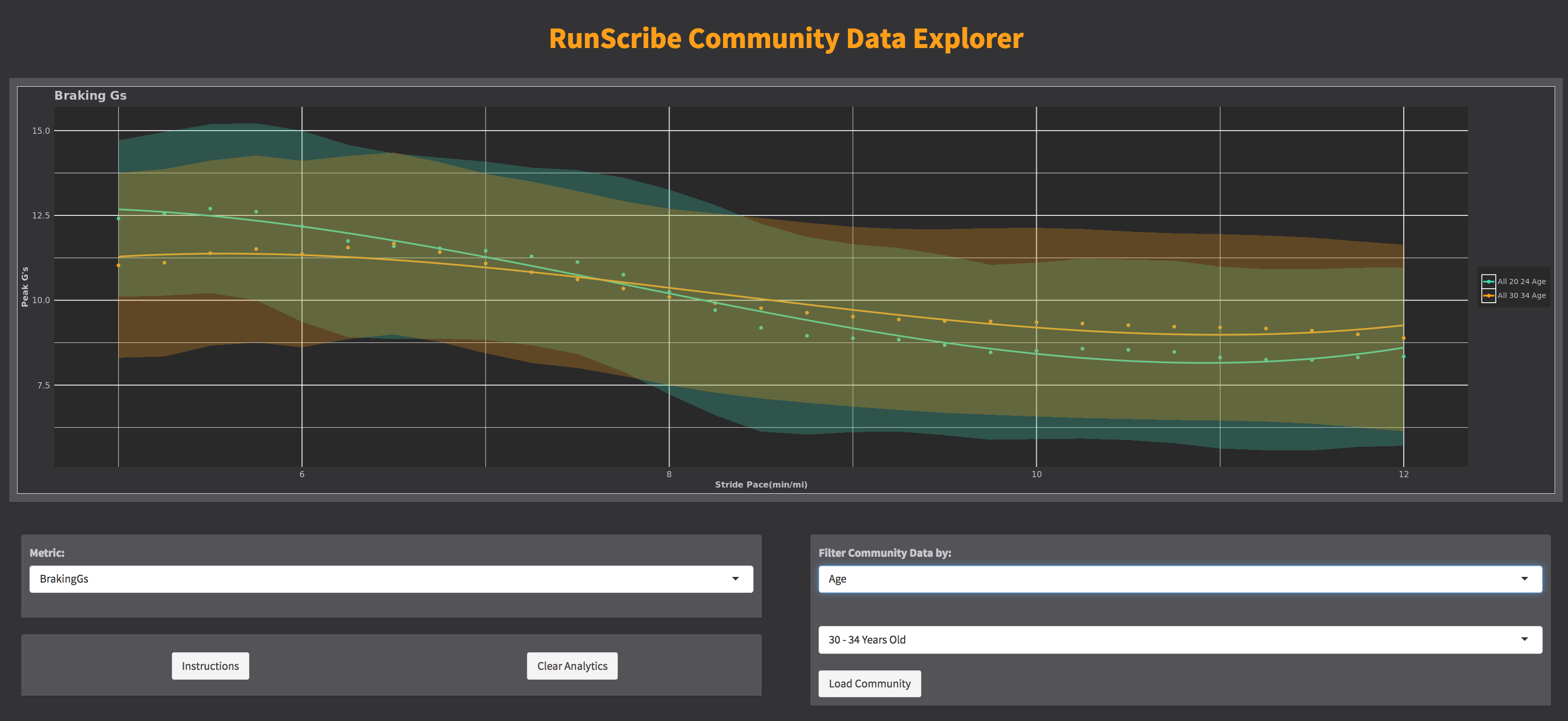

Community Data Explorer

Explore the RunScribe Community Databank
[Developed by Jamie Clark] Community Data Explorer

Data Analysis Tools

Over the years, we have developed a number of tools, many in [R]/Shiny that we use to analyze everything from RawData to our FootSteps Model. You can check some of them out here: Data Analysis Tools

Shoe Characteristics

We have done a fair bit of analysis when it comes to shoes and shoe characteristics, slicing the RunScribe databank as many ways as we can. Here are some of our tools and findings: Shoe Characteristics

Developer

  • RunScribe API
    • User Data API — Documentation
    • Aggregate/Big Data API — Coming Soon!
  • Custom Development Tools
    • Python SDK for Bluetooth low energy
      • Configure/Control/Query/Transfer
    • Bluetooth low energy Framework(s)
      • Provided frameworks fully implement the Scribe Bluetooth low energy protocol specification
    • Reference Design App(s)
      • Full source code for iOS and Android example apps
  • RunScribe Science / Science Add-On
    • Interested in using RunScribe H/W for another application or just RawData collection? Click here to see other purchase options.

Specs

  • Weight: 9g
  • Size: 35 x 25 x 7.5mm
  • What’s Inside
    • Bluetooth® low energy technology MCU: Nordic nRF52832 (Cortex-M4F CPU, 512kB Flash, 64kB Ram, ANT/BLE Central/Peripheral)
    • Motion Sensor: Invensense 9-Axis MPU-9255 (3-Axis Gyro, 3-Axis Accel, 3-Axis Magnetometer)
    • LEDs: (3) Quasarbrite RGB LEDs
  • Data (Streaming)
    • Configurable (Accel, Gyro, Accel + Gyro, Accel + Gyro + Magnetometer, Quaternion) / Sampling/Update Rates
  • Data (Logger)
    • Configurable (Accel, Gyro, Accel + Gyro, Accel + Gyro + Magnetometer, Quaternion) / Sampling/Update Rates
    • Up to 500Hz for Raw Sensor data [RunScribe Plus], 200Hz for Quaternion, Quaternion + RawData
  • Configurable Auto-Start/Stop (Accel, Gyro thresholds)
  • Bluetooth® file transfer
